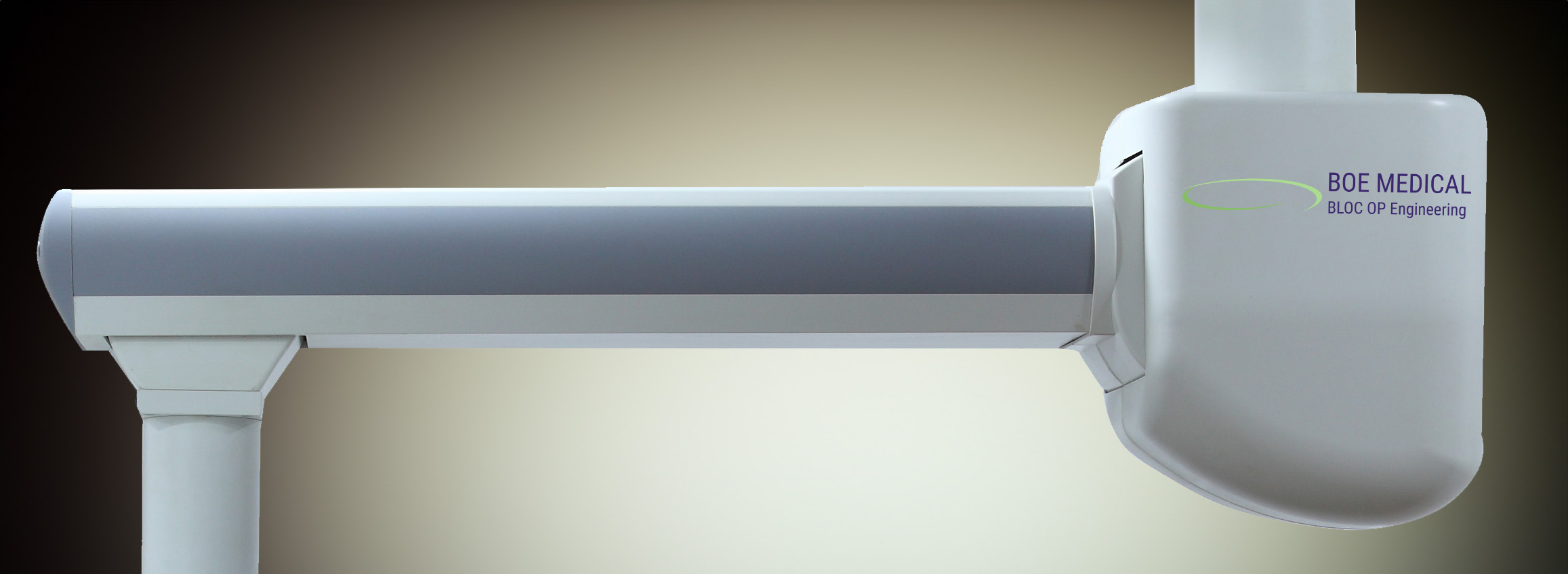

Ceiling Motorized Pendant

The electric single arm surgical pendant is specially designed for meeting the requirements in operation theater.

Single Arm Motorized
O.R. Pendant

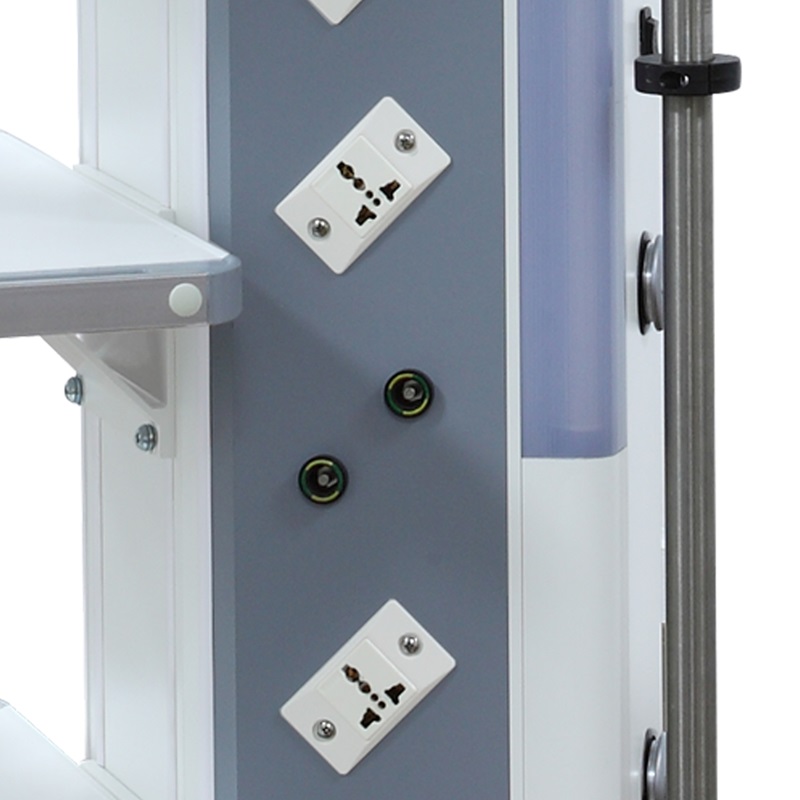

BOE MEDICAL provides state of the art ceiling pendants that are widely used for Surgical operating theatres. Single arm motorized pendants are mainly used for placing monitors, electrosurgical unit, equipment, etc. which are required for major types of surgeries, besides, it provides the necessary medical gas units, low power, intranet -RJ45, fibre Optic communication systems and power output terminal.

Technical Specifications

  • Motorized Single Arm OT Pendant for Hospital
  • Move up and down and 340-degree range of arm rotation
  • One horizontal arm rotating radius (900 mm)
  • Aluminum profile, electrical device separated in the cabinet
  • Ceiling plate support system
  • Mechanic brake (Optional pneumatic brake)
  • Maximum Load capability: 180 kg
  • Friction braking system/Pneumatic bracing system to prevent movement
  • More monitor tables, gas outlet, electric and drawers can be adjusted according to customer needs
  • Nominal voltage : 240 V / 50 Htz – continuous operation
  • Protection class : I
  • Protection type : IP 20
  • Medical gas terminal Units, bsi, French, US or German standards for Oxygen, Medical Air, Nitrous Oxide, Surgical Air, Vacuum- 900 mbar, AGSS, Etc.
  • Support arm lenght 1000 mm

Product details

The medical pendant can move up and down and rotate up to 340 degrees. One horizontal strong  and reinforced aluminum arm. Using Europe brand motor. The ceiling pendant arm has the capability of up & down movement by an electric motor. The electric single arm surgical pendant is specially designed for meeting the requirements in operation theatre and to solve the management problem of efficiency. Friction braking system/Pneumatic bracing system to prevent movement.

Available Accessories

  • Horizontal Side rails for accessories DIN EN ISO 19054
  • S. STEEL VERTICAL supporting tubes and horizontal supporting tubes
  • Shelves
  • Consoles
  • Examination lights
  • Adjustable suction units, Oxygen flowmeters, air flow meters
  • Telescopes curtain rail system Ropimex

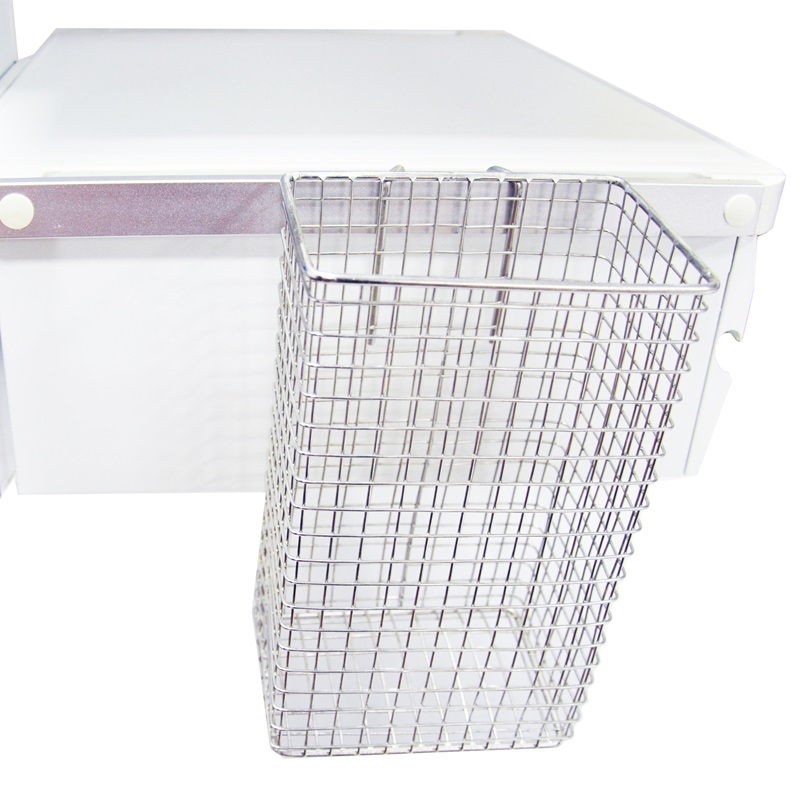

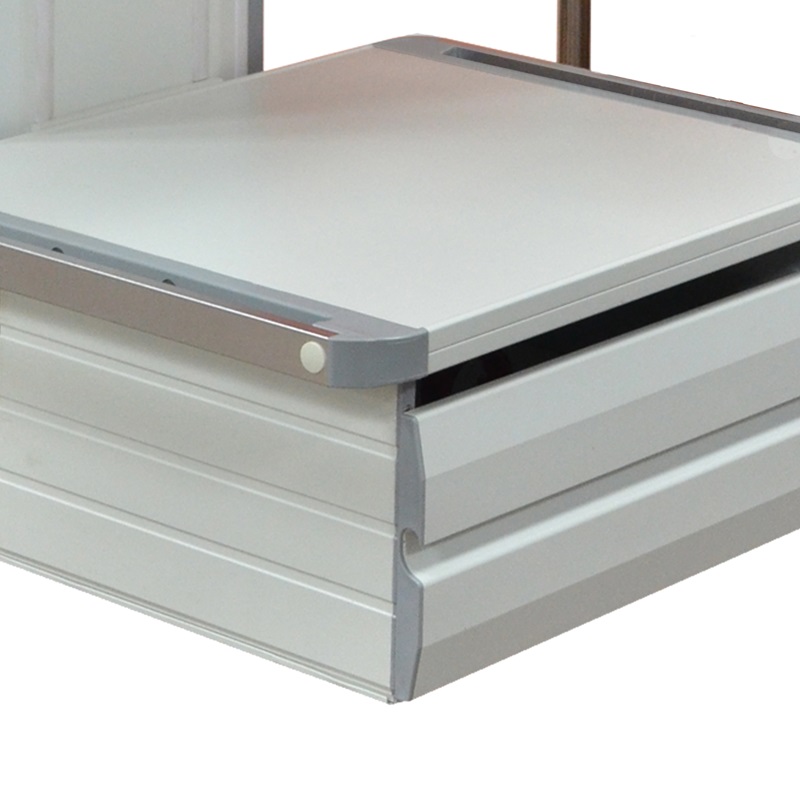

  • Baskets, drawers, I.V rods, catheter holders, discard bags etc.
